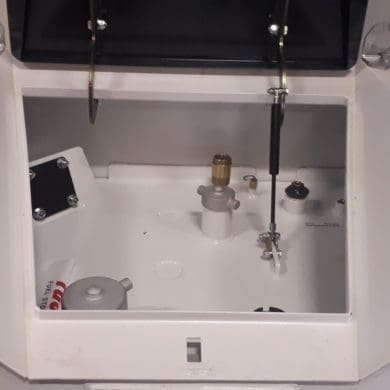

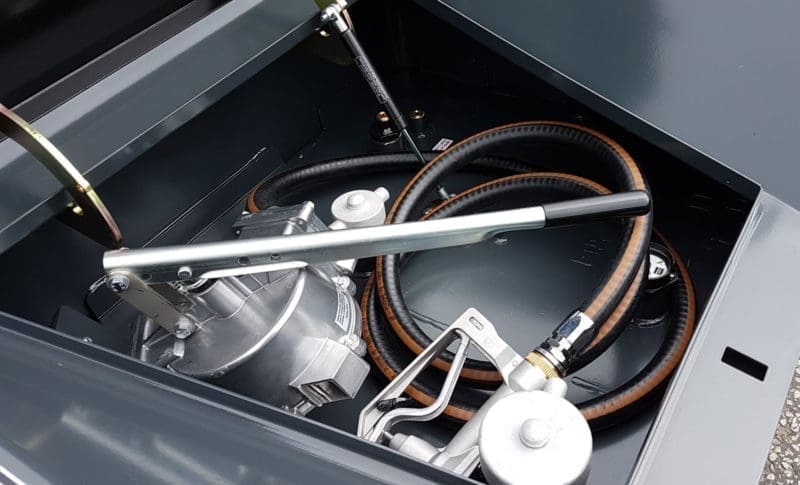

These pump options are standard equipped with a 3 meter hose and nozzle. The hand pump can be adjusted in two different positions, where different quantities can be pumped per stroke. The standard 12/24V pump is equipped with 3 meters of power cable and pegs to attach it to the battery. The 230v pump logically comes with a plug that you can plug into the socket or into antother power source.
The option to have a filter and oilflow meter on on your FuelCube has several advantages. The filter ensures the separation of water, dirt, sand and rust. In this way the engine of your machine receives cleaner diesel. This filter also automatically stops the fuel supply when the filter needs to be replaced. Furthermore, the Piusi oilflow meter is ideal to keep track of how many liters you have tanked in total and how many liters you refuel at a time or during a certain period.

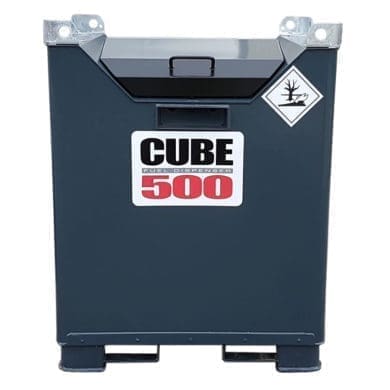

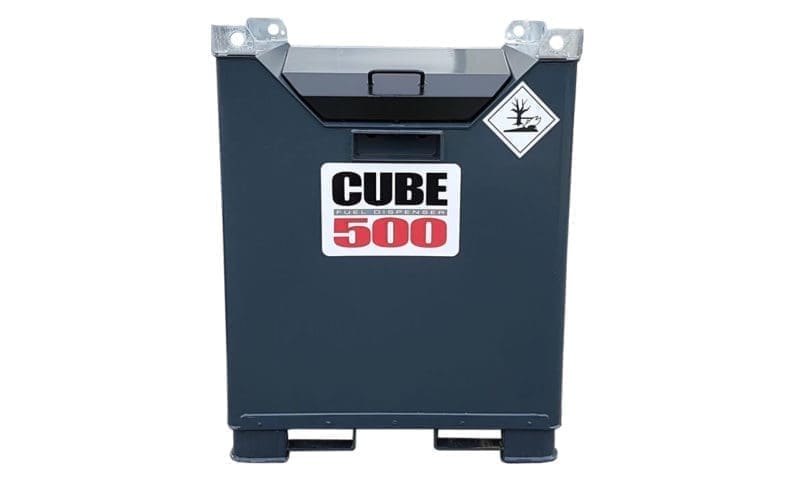

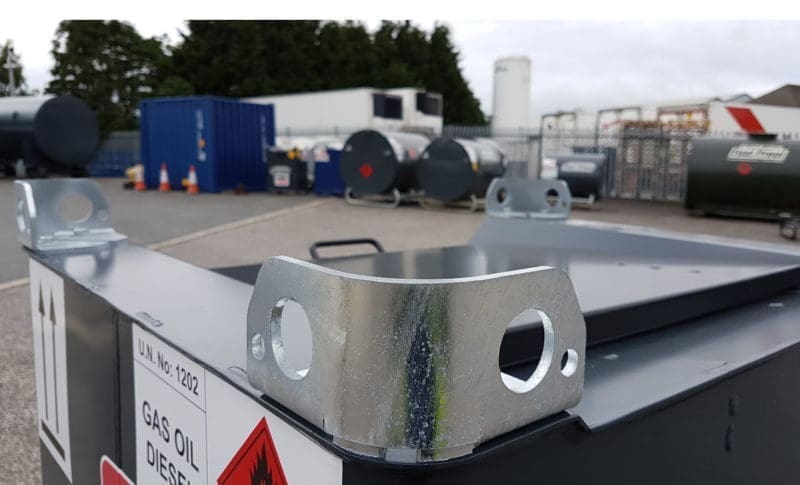

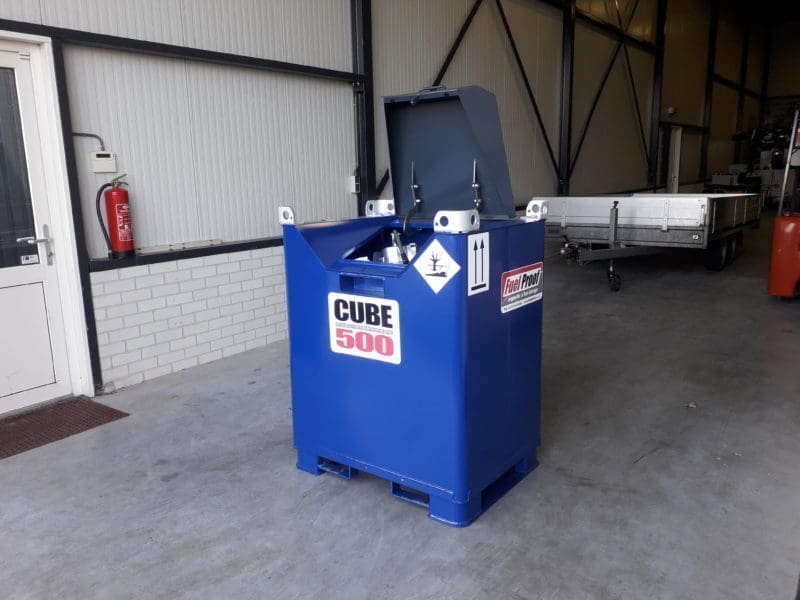

The mobile diesel storage tanks from the British FuelProof are strong and robust, as this 500 liters FuelCube. This diesel storage tanks is completely fabricated from 3 and 4 mm thick steel and double wanded with a capacity of 110%. The FuelCube is equipped with fork pockets and lifting eyes and is stackable. Even when filled with fuel, the tank can be lifted on the lifting eyes. The FuelCube is standard equipped with one pair of generator connections and can be further equipped with different pumps. the pump cabinet can be closed by means of a lock. The tank comes with a UN/ADR approval certificate and a 10-year guarantee.
Price does not include pump set.
|Dimensions(l x w x h)||784 x 1024 x 1282 mm|
|Weight empty/full||320/755 kg|
|Generator connection||1 set with ½”BSP-connection|
|Stackable||Yes, up to two high full|
|Number of fork brackets||2 sides|
|Number of lifting eyes||4 pieces|
Standard RAL 7016, other colours possible
|Maximum hose length||3 meters|
|Steelthickness inner and outer tank||3 and 4 mm|
|Suitable for||Diesel, gasoline|
|Equipment standard||- 3” BSP fillpoint
- ¼” pressure valve
- ½” BSP bund drain socket
|Pumpset possible||Yes, look at accessoiries for the available pumpsets|
784 x 1024 x 922 mm
784 x 1024 x 1282 mm
1016 x 1220 x 1362 mm
1318 x 1060 x 1300 mm
