FuelStore 500 liters
- Unique in the market
- 10 years warranty
- UN/ADR approved
FuelStore 500 Litres

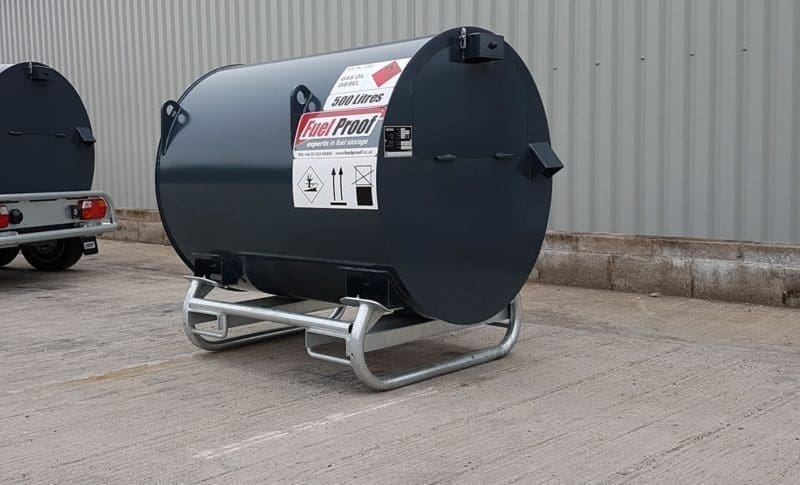

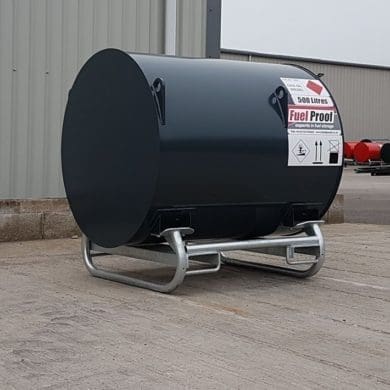

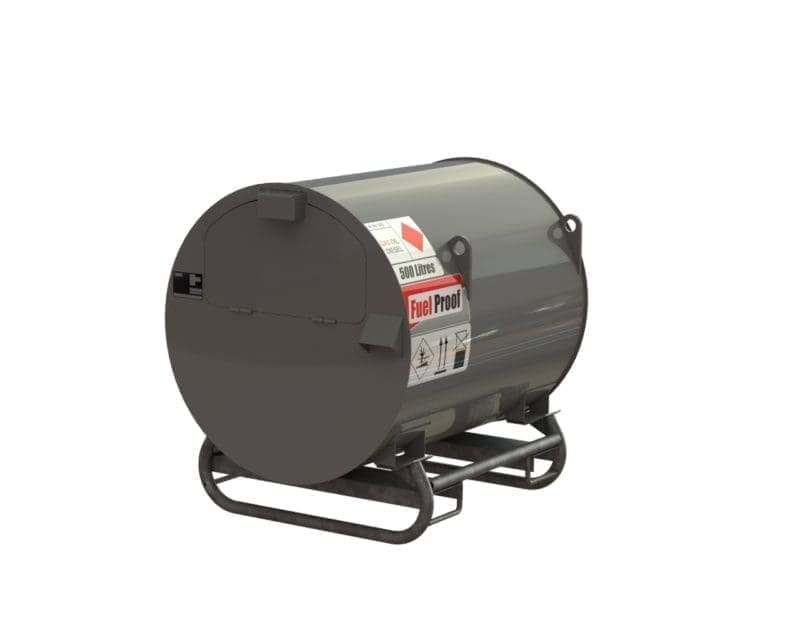

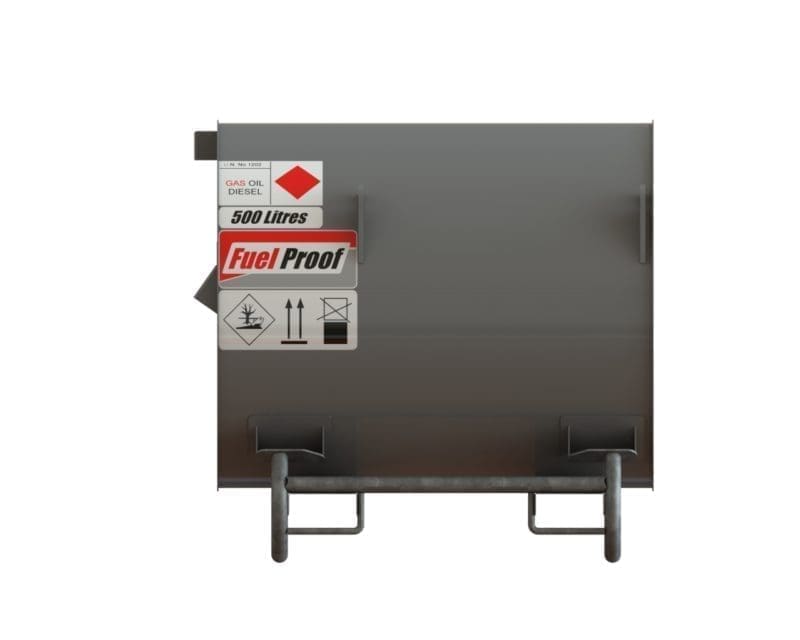

The FuelStore 500 litre unit is constructed entirely from 3 mm thick steel and fitted with a galvanized base frame. This product is robust and suitable for a wide range of applications. In addition, the FuelStores are designed for easy transportation. With a lockable pump compartment and a strong, durable design, these diesel tanks are vandal-resistant and highly reliable. The FuelStore is also equipped with integrated forklift pockets and four lifting eyes.
Thanks to its UN/ADR certification, the storage tank is approved for transporting diesel on public roads. Each FuelStore is supplied as standard with one pair of generator connections and a contents gauge, with a wide range of pump options available. Unique in the market – that is what Fuel Proof’s FuelStores stand for.
The leading FuelStores are the strongest and safest double-walled fuel tanks available. Manufactured entirely from steel, these tanks fully comply with current environmental regulations. They deliver unrivalled safety, durability, and exceptional value for money.
Key Benefits:
- The strongest and safest diesel tanks on the market
- UN-approved for the transport of diesel by road
- Fully compliant with current environmental regulations

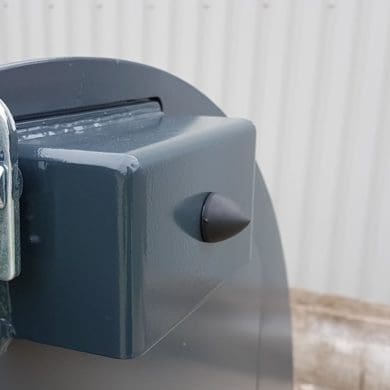

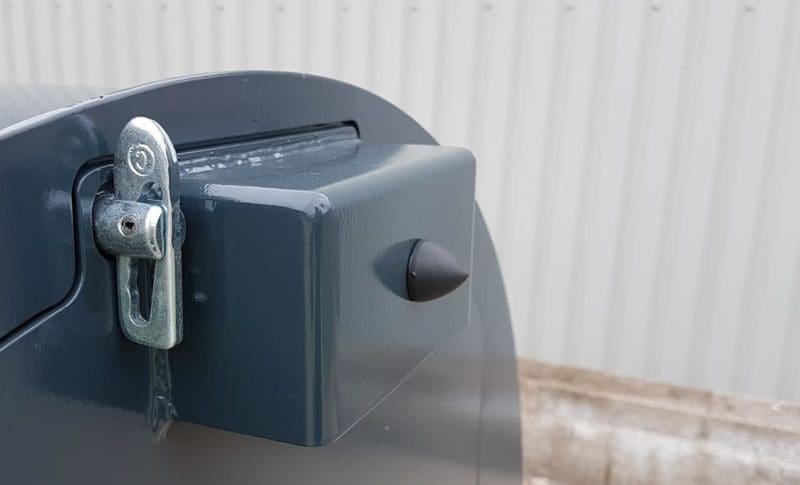

- Lockable door with anti-theft padlock system

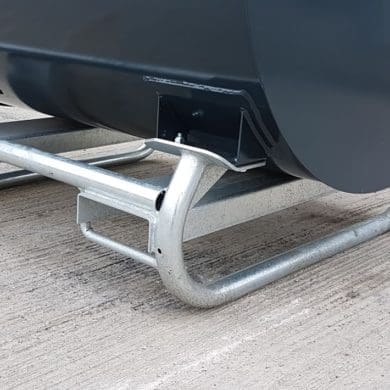

- Heavy-duty galvanized steel base with integrated forklift sleeves
- Fully welded steel construction for long-lasting, reliable performance
- 10-year limited warranty for peace of mind
Price excludes pump set – see options alongside
| PACKAGE CODE | PUMP | FLOWMETER | HOSE | TRIGGER | FILTER |
| FS010 | Handpump | x | 4 meter diesel hose 3/4'' | Manuel trigger | Particle filter |

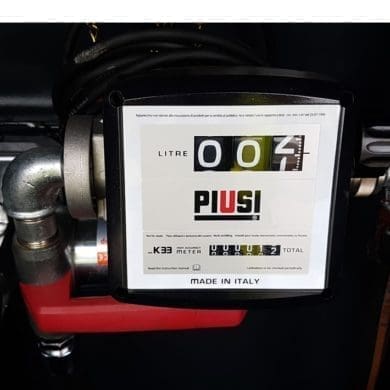

| FS020 | Handpump | 3 digit flow meter | 4 meter diesel hose 3/4'' | Manuel trigger | Particle filter |
| FS050 | 12/24V 50L/min pump | x | 4 meter diesel hose 3/4'' | Auto shut-off trigger | Particle filter |
| FS060 | 12/24V 50L/min pump | 3 digit flow meter | 4 meter diesel hose 3/4'' | Auto shut-off trigger | Particle filter |
| FS130 | 12V 85L/min pump | x | 4 meter diesel hose 1' | High flow auto trigger | High flow particle filter |
| FS140 | 12V 85L/min pump | 3 digit flow meter | 4 meter diesel hose 1' | High flow auto trigger | High flow particle filter |
| FS250 | 72L/min 230V pump | x | 4 meter diesel hose 1' | Auto shut-off trigger | Particle filter |
| FS260 | 72L/min 230V pump | 3 digit flow meter | 4 meter diesel hose 1' | Auto shut-off trigger | Particle filter |
| Capacity | 500 liters |
| Dimensions (l x w x h) | 1318 x 1060 x 1300 mm |
| Weight empty/full | 450/885 kg |
| Capacity meter | Yes |
| Generator connection | 1 set with ½”BSP-connection |
| Stackable | No |
| Number of fork brackets | 2 sides |
| Number of lifting eyes | 4 pieces |
| Coating | 2-components polyurethane Standard RAL 7016, other colours possible |
| Maximum hose length | 6 meters (Extended cabinet depth possible when more hose is desired) |
| Steelthickness inner and outer tank | 3 mm |
| Approvals | UN/ADR approved |
| Suitable for | Diesel, gasoline |
| Application | Mobile use |
| Equipment standard | - 2” fill point - 3” fillconnection - 1” check valve - ½” pressure relieve valve |
| Pumpset possible | Yes, look at accessoiries for the available pumpset |
| Filename | Size |
|---|---|
| Fuelstore Static Manual | 19 KB |
| CE Certificate Fuelstore 500 Ltr | 5 KB |
| UN IBC Certificate - 500L | 5 KB |
