These pump options are standard equipped with 4 meters hose, nozzle and filter. The hand pump is adjustable in two different positions, where different quantities can be pumped per stroke. The standard 12/24V pump is equipped with 3 meters power cable and pegs to attach it to a battery. The 230V pump logically comes with a plug that you can plug into the socket or into another power source.

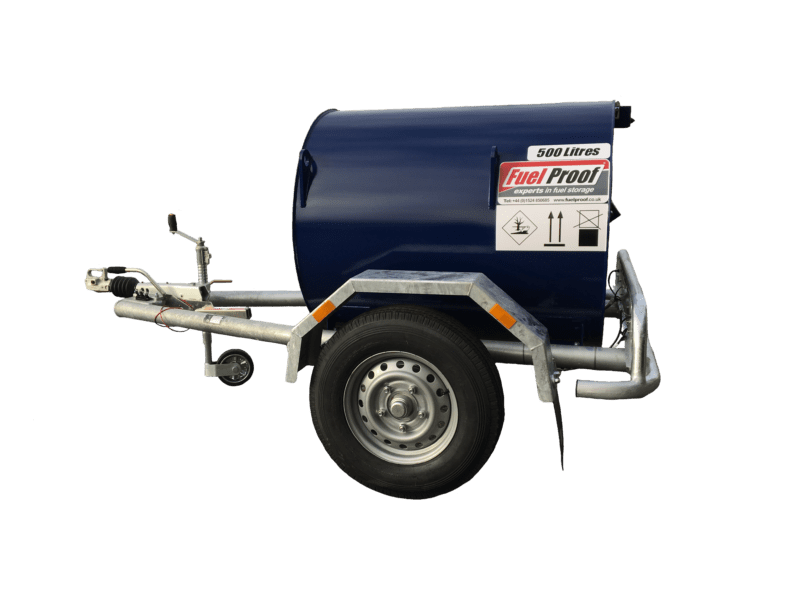

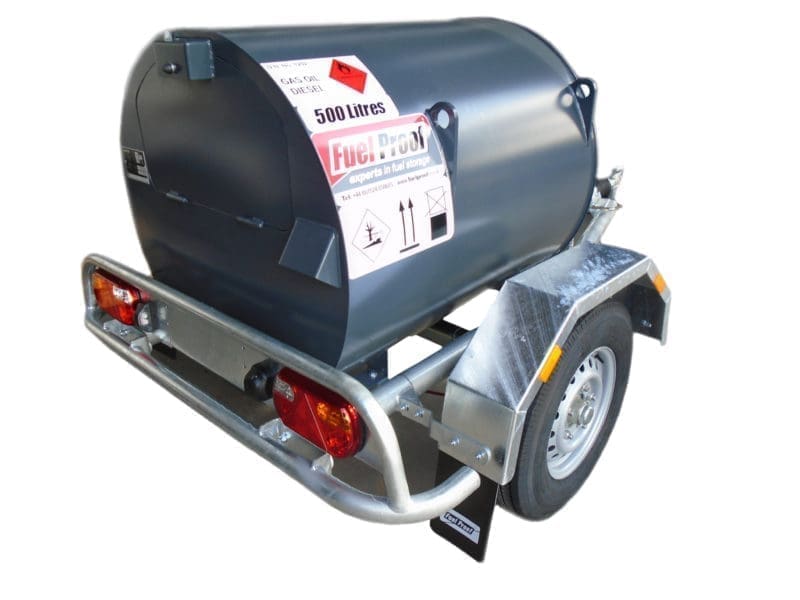

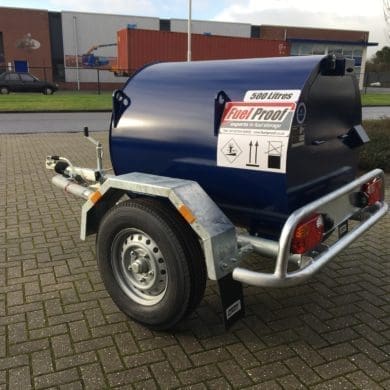

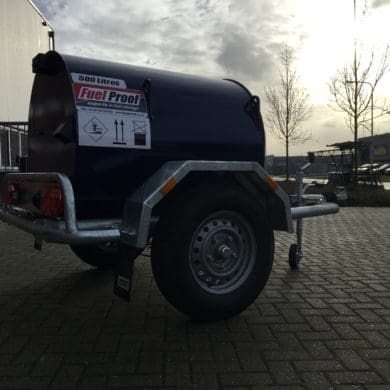

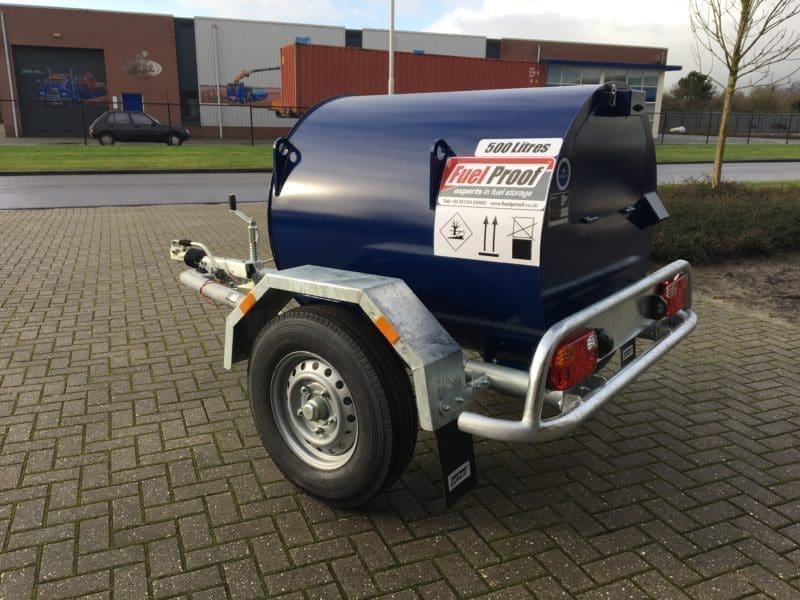

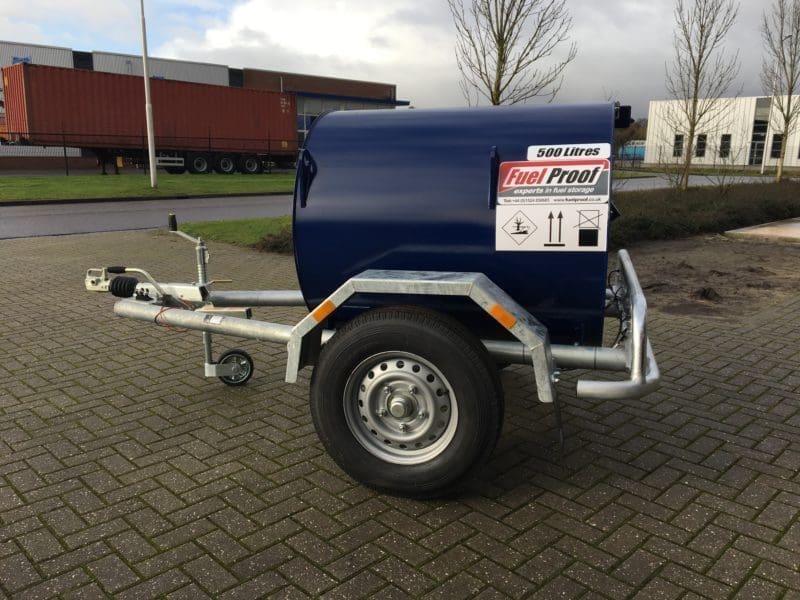

This Highway Tow Diesel Bowser 500 liters consists of a robust FuelStore 500 liters, which is mounted on a single-axle trailer. The tank is made of 3 and 4 mm thick steel and the chassis is fully galvanized. This diesel trailer is of high quality with excellent roadholding, which ensures years of carefree driving. Furthermore, this product from the British Fuel Proof has been designed to be on the road, making it unique in the market as a special product. With a lockable pump cabinet and strong design, this diesel trailer is foolproof and very reliable. This Highway Tow Diesel Bowser has been UN/ADR approved and has an EU road permission, which means it is approved for the transport of diesel on public roads. In addition, this trailer is standard equipped with four lifting eyes and is supplied with one pair of generator connections and a content gauge. This diesel trailer has a wide choice of pump options available.
Price does not include pump set.
|Dimensions L x W x H||2916 x 1744 x 1494 mm|
|Weight empty/full||645/ 1080 kg|
|Generatorconnection||One set ½” connection|
|Number of fork brackets||None|
|Number of lifting eyes||4 pieces|
Standard RAL 7016, other colours possible.
|Maximum hose length||6 meters
(Extended cabinet depth possible when more hose is desired)
|Steel thickness inner and outer tank||3 mm|
|Approvals||UN/ADR approved (new at delivery)|
|Suitable for||Diesel, gasoline|
|Equipment standard||- 3” fillpoint
- 2” fillconnection
- 1” Check valve
- ½” pressure relieve valve
|Pumpset possible||Yes, look at accessoiries for the available pumpsets.|
|Coupling||50 mm ball coupling|
784 x 1024 x 922 mm
784 x 1024 x 1282 mm
1016 x 1220 x 1362 mm
1318 x 1060 x 1300 mm
