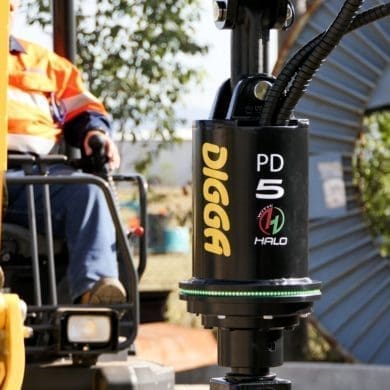

Digga is a well-known brand on the market when it comes to hydraulic drives, but with the new range of auger drives, equipped with the HALO Alignment System, Digga takes its products to an even higher level.
With the alignment system located in the drive, HALO indicates to the user whether the drive is aligned using a series of LEDs. When the actuator moves from its perpendicular position, a series of red and green lights illuminate to effortlessly guide the user to an upright position.
This allows you to drill vertically without additional guidance from colleagues or a spirit level. Due to the straight line, there are fewer angle adjustments, holes are more fitting and less concrete is used. In addition, this way of working places less or no side load on the auger and auger drive.
The Digga Halo auger drive comes standard with a 3 meter cable with cigarette lighter plug for powering the LEDs on the auger drive. It is also possible to power the HALO LEDs using a battery pack / battery kit, this battery has a strong magnet on 1 side with which it can be attached to the auger drive unit. It is also possible to use an extension cable of 1, 3 or 6 meters, so that the HALO can always be supplied with electricity.
With Digga’s premium auger range, we go the extra mile in performance, quality and cost-effectiveness. After 30 years of further development, there is a high-quality range of augers on the market for excavators, skid steer loaders, telehandlers and mobile cranes. Completely manufactured and assembled by Digga, using only the very best materials and the strictest quality control.
|Max torque (Nm) @ 240 bar **||3.544||4.448|
|Recommended Liters p/m. **||45-75||55-85|
|Motortype||EATON 2K Bell||EATON 2K Bell|
|max. Pressure - Do not exceed **||240 Bar @ 60 lpm||240 Bar @ 60 lpm|
|max. liters - Do not exceed ** **||115 lpm @ 130 Bar||115 lpm @ 130 Bar|
|Max continuous power **||25 Kw (34 pk)||25 Kw (34 pk)|
|Pressure relief valve||Optional||Optional|
|Standard output shaft||65 mm Rnd||65 mm Rnd / 75 mm square|
|Total Length (mm)||557||557|
|Recommended auger||A4 / RC4 / DR4||A4 / RC4 / DR4|
|Max auger diameter breakable rock *||600||750|
|Max auger diameter breakable rock *|
Max auger diameter Clay / shale (mm) *
|Max auger diameter Earth (mm) *||750||900|
|(*) Max/min auger diameter (DIA) depending on ground conditions. Recommendation is only a guideline.|
(**) These charts are for guidance only. When in doubt, always request information.
