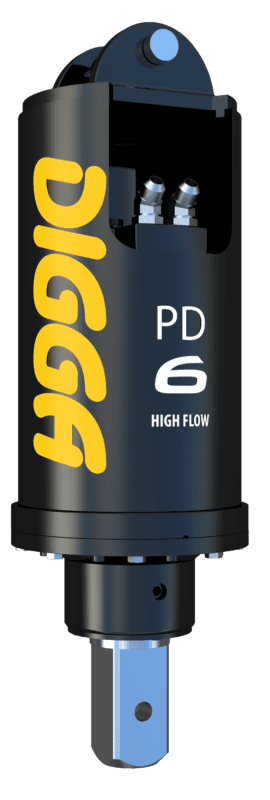

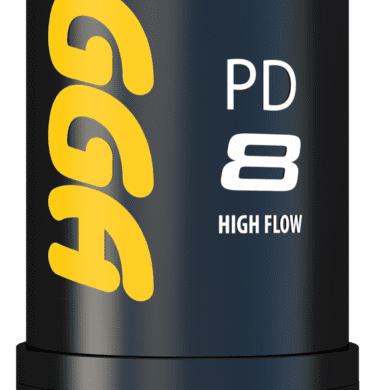

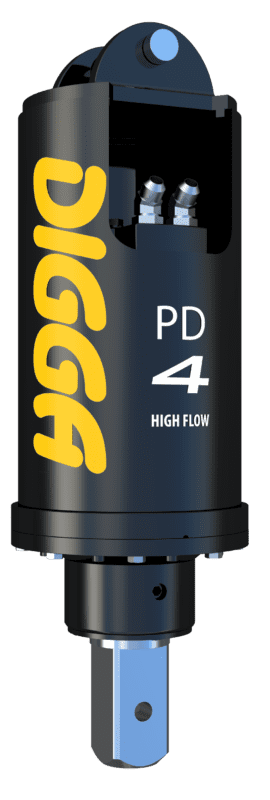

Digga’s PD4HF to PD10HF series of augers, also known as Auger Drives, is ideally suited for mini excavators with a flow between 70 and 200 lpm and a weight of up to 8 tons. Completely manufactured and assembled by Digga, using only the highest quality materials and strict quality control. EuroGate International supplies Digga augers throughout the Benelux.
The innovative drive head design allows the gearbox to fit through the hole. This maximizes drilling depth without extensions, eliminating downtime and minimizing maintenance, optimizing your return. Digga augers suitable for various types of soil, sand and stone are equipped with Digga / Eaton clock motors that are specially designed for augers in most soil conditions.
Backed by industry-leading warranty and a European factory, we provide solutions for excavators, skid steer loaders, telehandlers and mobile cranes of various makes and models, including Kubota, Bobcat, Cat, JCB, Case, Komatsu, Kobelco, Takeuchi and more.
• Compact, high-torque Digga-made gearbox
• Highly efficient design with fewer moving parts
• Equipped with Eaton/Digga Geroler® hydraulic motor
• No case drain required
• Full range of axles available on request
• Axle locking system for extreme use
• Drive fits into hole for increased digging depth
|Version||High Flow||High Flow||High Flow||High Flow|
|Max torque (Nm) @ 240 bar **||4.473||5.634||7.136||9703|
|Recommended Liters p/m. **||45-75||55-85||55-85||55-85|
|Motortype||EATON 2K Bell||EATON 2K Bell||EATON 2K Bell||EATON 2K Bell|
|max. Pressure - Do not exceed **||240 Bar @ 130 lpm||240 Bar @ 130 lpm||240 Bar @ 130 lpm||240 Bar @ 130 lpm|
|max. liters - Do not exceed ** **||170 lpm @ 180 Bar||210 lpm @ 145 Bar||230 lpm @ 130 Bar||230 lpm @ 130 Bar|
|Max continuous power **||50 KW (67 HP)||50 KW (67 HP)||50 KW (67 HP)||50 KW (67 HP)|
|Pressure relief valve||Optional||Optional||Optional||Optional|
|Standard output shaft||75 mm square||75 mm square||75 mm square||75 mm square|
|Total Length (mm)||557||557||557||557|
|Recommended auger||A6 / RC6||A6 / RC6||A6 / RC6||A6 / RC6|
|Max auger diameter breakable rock *||750||900||1000||1000|
|Max auger diameter breakable rock *|
Max auger diameter Clay / shale (mm) *
|Max auger diameter Earth (mm) *||1200||1200||1200||1200|
|(*) Max/min auger diameter (DIA) depending on ground conditions. Recommendation is only a guideline.|
(**) These charts are for guidance only. When in doubt, always request information.
