Digga Auger drive 10 – 20 ton

  • Excellent for combining with the A8 and RC8 series
  • Especially for machines up to 20 tons
  • High quality
VAT Price
incl excl
4.934,008.711,00
excl. VAT
€5.970,14 - €10.540,31
incl. VAT
Added to your quotation request

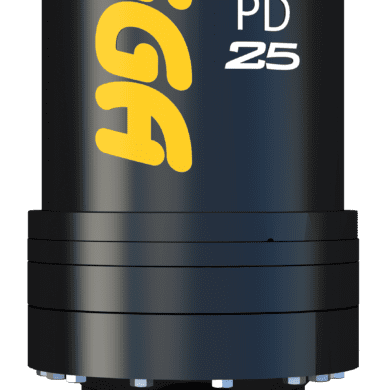

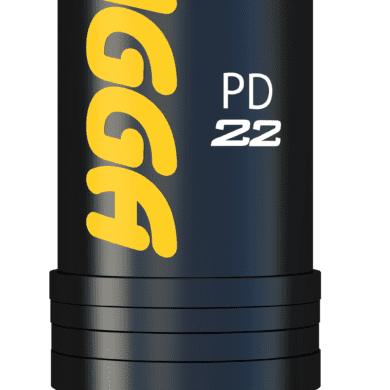

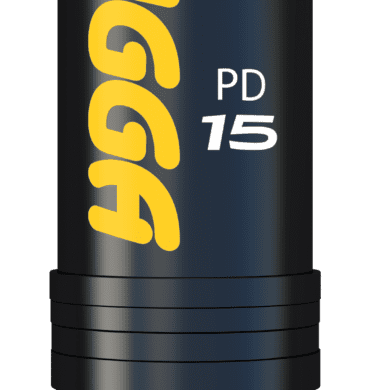

Digga PD12 - PD25
Add to quote request
+ Eurogate Cart
Want to know more about the possibilities? +31 (0)523-638286
Request quote

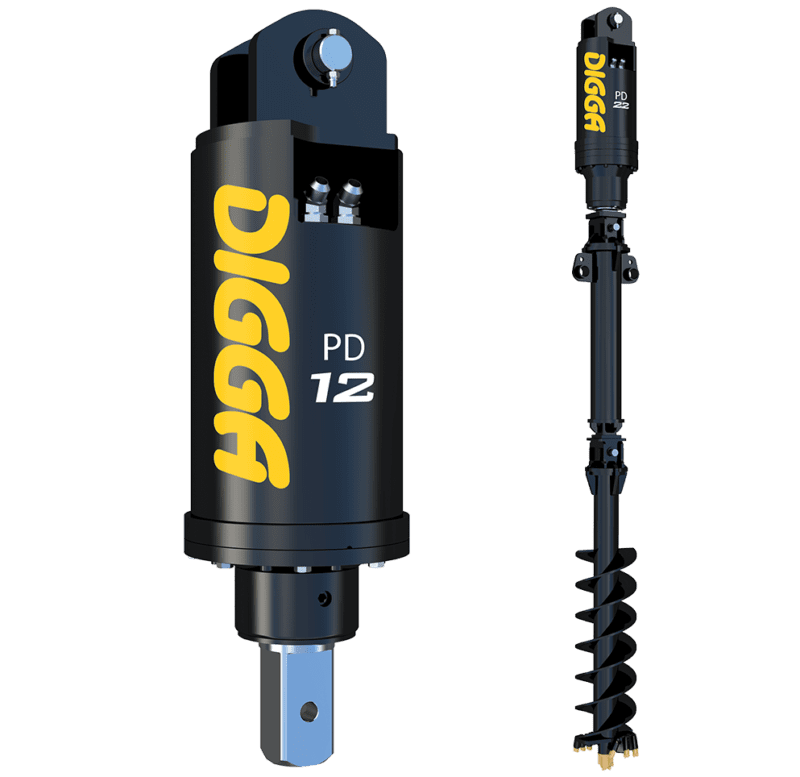

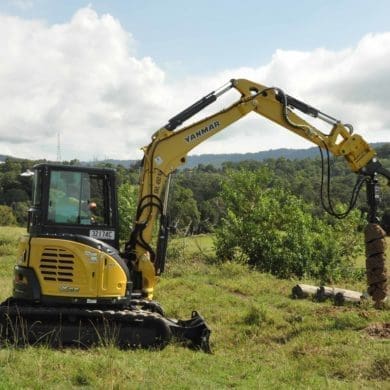

Digga auger for excavators and cranes up to 20 tons

Digga’s PD12 to PD25 series of augers, also known as Auger Drives, are ideally suited for excavators from 10 to 20 tons with a flow between 70 and 230 lpm.

The innovative design allows the gearbox to fit through the drilled hole in diameter to maximize drilling depth without extensions, eliminating downtime and minimizing maintenance, optimizing your efficiency.

Digga planetary augers are equipped with Digga/Eaton clock motors specially designed for augers in most soil conditions.

Backed by industry-leading warranty and a European factory, Digga partnered with EuroGate International to provide the solution for excavators and backhoe loaders of various makes and models, including Kubota, Bobcat, Cat, JCB, Case, Komatsu, Kobelco, Takeuchi and more.

Functions

– Compact High Torque Digga Manufactured Gearbox
– Highly efficient design with fewer moving parts
– Equipped with Eaton/Digga geroler hydraulic motor
– No case drain needed
– Axis locking system for extreme use
– The machine fits in the hole for increased digging depth

ModelPD12PD15PD18PD22PD25
Max torque (Nm) @ 240 bar **11.26813.89717.60322.14226.267
Recommended Liters p/m. ** 120-230120-230120-230120-230120-230
Motortype EATONEATONEATONEATONEATON
max. Pressure - Do not exceed ** 240 Bar @ 130 lpm240 Bar @ 130 lpm240 Bar @ 130 lpm240 Bar @ 130 lpm240 Bar @ 130 lpm
max. liters - Do not exceed ** ** 230 lpm @ 130 Bar 230 lpm @ 130 Bar 230 lpm @ 130 Bar 230 lpm @ 130 Bar 230 lpm @ 130 Bar
Max continuous power ** 50 KW (67 HP)50 KW (67 HP)50 KW (67 HP)50 KW (67 HP)50 KW (67 HP)
Pressure relief valveOptionalOptionalOptionalOptionalOptional
Standard output shaft75 mm square75 mm square75 mm square75 mm square75 mm square
Weight (kg) 149176176176300
Total length (mm) 9501006100610061152
Diameter (mm) 290290290290290
Recommended augerA8 / RC8A8 / RC8A8 / RC8A8 / RC8RC10 / RC11
Max auger diameter breakable rock *12001200150015001500
Max auger diameter breakable rock *
Max auger diameter Clay / shale (mm) *
10001200120012001200
Max auger diameter Earth (mm) *16001600160016001800
(*) Max/min auger diameter (DIA) depending on ground conditions. Recommendation is only a guideline.
(**) These charts are for guidance only. When in doubt, always request information.
