There are several adapters available for the HPD-60. Standard we supply the 98,4 mm and the 107,9 mm round adapters and the 103,4 x 103,4 square adapter. We can also have custom adapters made to measure.
The powerpacks have the same power, but consume less fuel than a compressor. The powerpacks are equipped with a mobile hydraulic pump and are also applicable to other hydraulic tools. The oil flow is adjustable.
Only when you connect your HPD-60 on your extractor, wheel loader, tractor and the like, you need an oil pressure flow divider. This ensures that there is a maximum of 30 liters of oil per minute going to the postdriver. It must be placed between the machine and the postdriver.
The HPD-60 can be connected to a double hydraulic hose. This is standard with the so called ‘Flat Face’ couplings. Of course we can also do this with the desired couplings to connect the hose to your machine. The maximum hose length without pressure reduce is 18 meters.

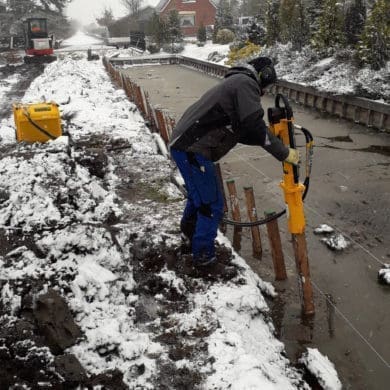

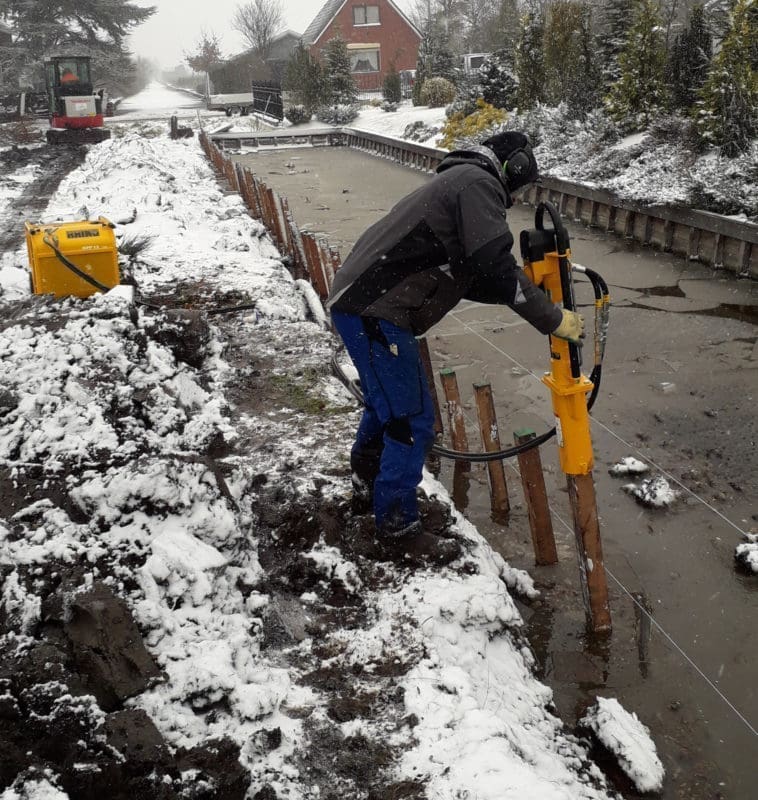

This hydraulic postdriver can be connected to the hydraulics of, for example, tractors and mini-excavators or on a compact hydraulic power pack. This machine has a great impact force and no less than 1380 beats per minute. This hydraulic powerhouse is similar to the PD-55.
Price does not include the adapter.
HPD Adapter | 80 x 80 mm, HPD60 Chuck-loc adapter ø63 mm, HPD Adapter | 110 x 110 mm, HPD Adapter | ø 110 mm, HPD Adapter | ø 130 mm, HPD Adapter | ø 89 mm, Other dimensions on request
25.4 mm round, 38.1 mm round, 50.8 mm round, 63.5 mm round, 76.2 mm round, 88.9 mm round
|Noise level||96 Lpa dB|
|Diameter hammer||60 mm|
|Hitting force||95 Joule|
|Number of beats||1380 per minute|
|Standard chucksize||98,4 mm (Not included with the price)|
|Maximum diameter||130 mm|
|Maximum adapter size||- 130 mm round
- 110 x 110 mm square
|Optional adapters||- 98,4 mm round
- 107,9 mm round
- 103,2 x 103,2 mm square
- Other adapters on request
Diameter 57 mm, Diameter 83 mm, Diameter 102 mm, Diameter 152 mm, Diameter 203 mm, Diameter 254 mm, Diameter 305 mm
Diameter 57 mm, Diameter 82 mm, Diameter 102 mm, Diameter 152 mm, Diameter 203 mm
102 mm, 57 mm, 83 mm
