Site Tow Diesel Bowser 1000 liters
- UN/ADR approved
- Single axle
- 10 years warranty

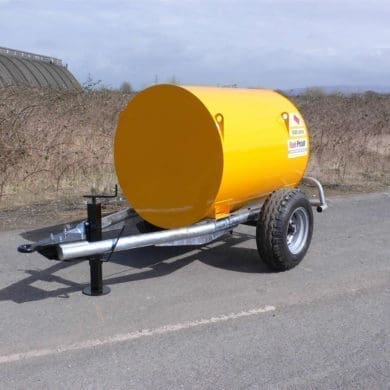

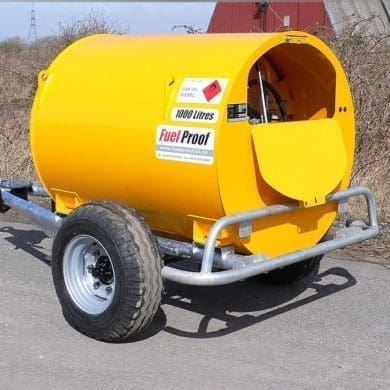

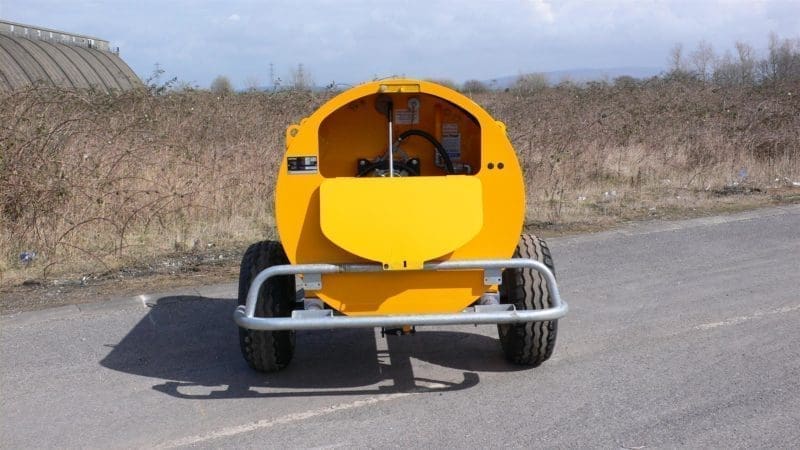

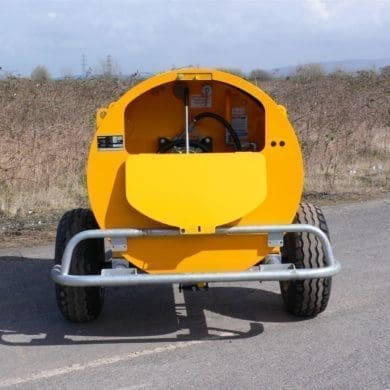

Site Tow Diesel Bowser 1000 liters
This Site Tow Diesel Bowser 1000 liters consists of a robust FuelStore 1000 liters, which is mounted on a single axle trailer. The tanks is made of 3 and 4 mm thick steel and the chassis is fully galvanized. The trailer is of very high quality with very strong chassis and large tires. Furthermore, this diesel storage tank is equipped with a lockable pump cabinet and because of the strong design it is fool proof and very reliable. This Site Tow Diesel Bowser is equipped with for lifting eyes as standard.
Furthermore, this beautiful product is UN/ADR approved. The Site Tow Diesel Bowser 1000 liter comes standard with one pair of generator connections and a contet gauge. To make this storage tank as complete as possible, a huge range of pump options is available.
Price does not include pump set.
| PACKAGE CODE | PUMP | FLOWMETER | HOSE | TRIGGER | FILTER |
| FS010 | Handpump | x | 4 meter diesel hose 3/4'' | Manuel trigger | Particle filter |
| FS020 | Handpump | 3 digit flow meter | 4 meter diesel hose 3/4'' | Manuel trigger | Particle filter |
| FS050 | 12/24V 50L/min pump | x | 4 meter diesel hose 3/4'' | Auto shut-off trigger | Particle filter |
| FS060 | 12/24V 50L/min pump | 3 digit flow meter | 4 meter diesel hose 3/4'' | Auto shut-off trigger | Particle filter |
| FS130 | 12V 85L/min pump | x | 4 meter diesel hose 1' | High flow auto trigger | High flow particle filter |
| FS140 | 12V 85L/min pump | 3 digit flow meter | 4 meter diesel hose 1' | High flow auto trigger | High flow particle filter |
| FS250 | 72L/min 230V pump | x | 4 meter diesel hose 1' | Auto shut-off trigger | Particle filter |
| FS260 | 72L/min 230V pump | 3 digit flow meter | 4 meter diesel hose 1' | Auto shut-off trigger | Particle filter |
| Capacity | 1000 litres |
| Dimensions L x W x H | 3063 x 1780 x 1660 mm |
| Weight empty/full | 765/ 1635 kg |
| Capacitymeter | Present |
| Generatorconnection | One set ½” connection |
| Stackable | No |
| Number of fork brackets | None |
| Number of lifting eyes | 4 pieces |
| Coating | 2-components polyurethane Standard RAL 7016, other colours possible |
| Maximum hose length | 6 meters (Extended cabinet depth possible when more hose is desired) |
| Steelthickness inner and outer tank | 3 mm |
| Approvals | UN/ADR-approved |
| Suitable for | Diesel, gasoline |
| Application | Mobile use |
| Equipment standard | - 3” fillpoint - 2” fillconnection - 1” Check valve - ½” Pressure relieve valve |
| Pumset possible | Yes, look at accessoiries for the available pumpsets. |
| CHASSIS: | |
| Axles | Single |
| Lighting | No |
| Braked | No, but it is equipped with a handbrake |
| Coupler | Heavy Duty ring hitch |
| Chassis | Galvanized |

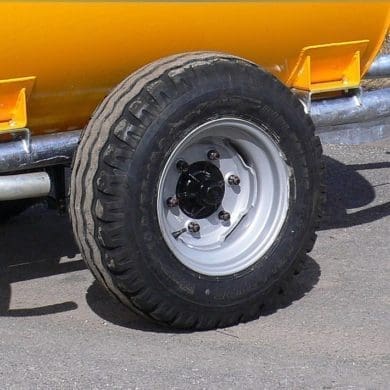

| Tires | 11.5/80-15.3 |
| EU roadapproved | No |
| Filename | Size |
|---|---|
| UN IBC Certificate - 1000L | 23 KB |
| Fuelstore Site Tow Manual | 19 KB |
